Wifi Smart Thermostat Gas/Water Boiler Heating-Programmable Wifi Thermostats for Home(2019Update)Wireless Digital Temperature Controller, Remote Control Room Thermostat Works with Alexa Google Home 3A
Color: Color Font

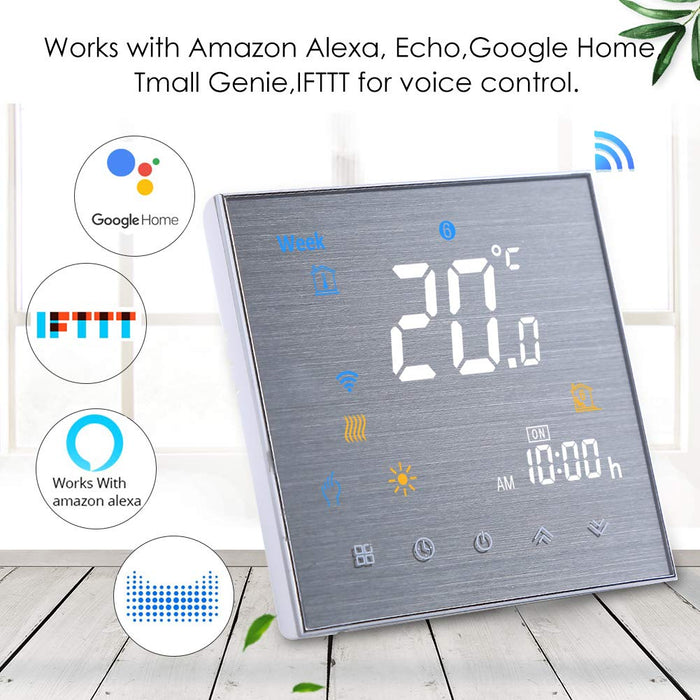

- Voice control: Smart home devices that work with Alexa, Google Home, IFTTT, wake up your alexa thermostat with your voice, free your hands to adjust the temperature and have a great experience.

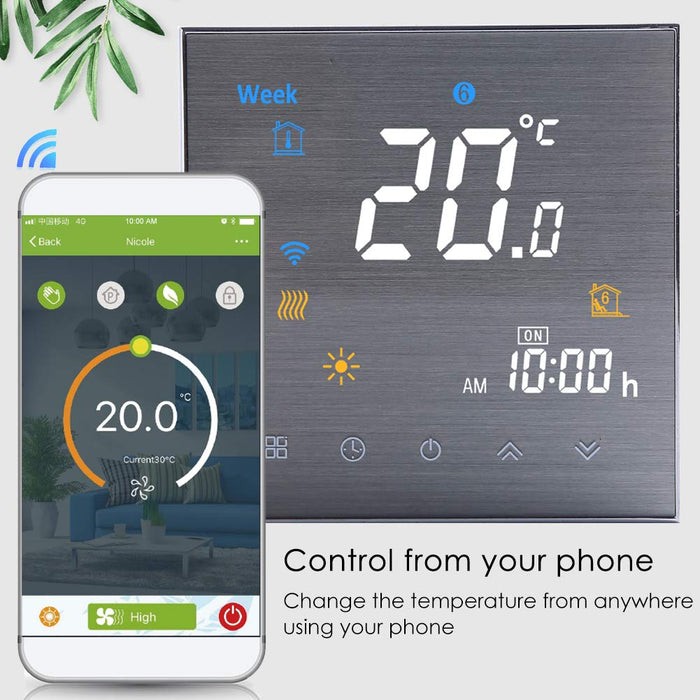

- Remote control: Remote control via the app, digital thermostat control anywhere, anytime, to provide heating at home, ensuring the most comfortable temperature when you get home, It's a professional controller for the smart home.
- Programmable thermostat: 5 + 2 six programmable periods to maximize comfort and economy, support programming or manual setting of daily heating programs to ensure comfort while saving energy and saving costs
- Easy installation: The wifi thermostat is an easy to install wall thermostat. with detailed instructions in the manual and the mobile app, most people install in 30 minutes or less, saving time
- Our service: Your smart thermostat is guaranteed for 24 months from the date of purchase, please make sure it is suitable for your home equipment system. If you have questions about this product, please send us a circuit diagram, we can provide you with manuals and suggestions.
About your thermostat
BHT-3000 WIFI Boiler Thermostat is a smart life devices that controls the temperature of your heated water/gas boiler system
Can easily reduce the cost of heating gas boilers
Through your smart phone, you can control the temperature of the room at any anywhere
1. The thermostat currently supports the 2.4GHZ network and does not support 5GHZ for the time being.
2. Please check the compatibility with your heating system before buying
3. The power supply board of the thermostat is a wall panel and can be connected by a wall or a cassette.
4.It needs to wire, it is not powered by battery
Boiler Termostat Connection diagram
Please refer to the picture
below terminals 1 and 2 Connect to a gas boiler . Terminals 3 and 4 and connect to AC95 ~ 240 V power .
Terminals 5 and 6 are for an external sensor，Do not connect anything there.
Remarks: carefully read the wiring diagram before connecting. If it connects badly, there will be a short circuit. Your gas boiler board will be damaged!
For IOS devices, search for My BecaSmart in Apple Store and download.
For Android devices, search for My BecaSmart in Google Play and download.
Power Supply: 95 ~ 240 VAC, 50 ~60HZ
Current Load: 3A (boiler/gas boiler)
Accuracy: ±0.5 °C or ±1 °F
Set Temp. Range: 5-35℃
Display Temp. Range: 5 ~99 ℃
Storage Temp.: -5 ~ 45 ℃
Shell Material: PC +ABS (flame retardant)
Installation Box: 86 * 86mm Square or European 60mm Round Box
Wire Terminals: Wire 2 x 1.5mm2 or 1 x 2.5 mm2
Protection Class: IP 20
Buttons: Touch Buttons
Installation/programming manual :1pc
